EDP Headquarters ✖️ Architects: ELEMENTAL/ Alejandro Aravena ➕ Location: Lisbon, Portugal ◾️Year: 2024 ➗Drawings:Planimetric diagram of visual openings with marked vertical circulation nodesCompositional diagramProportional diagram – SectionProportional diagram – PlanStreet-front perspective 🟰 Annotations:A – Pathway to entranceB – WorkspacesC – Ancillary spaces and…

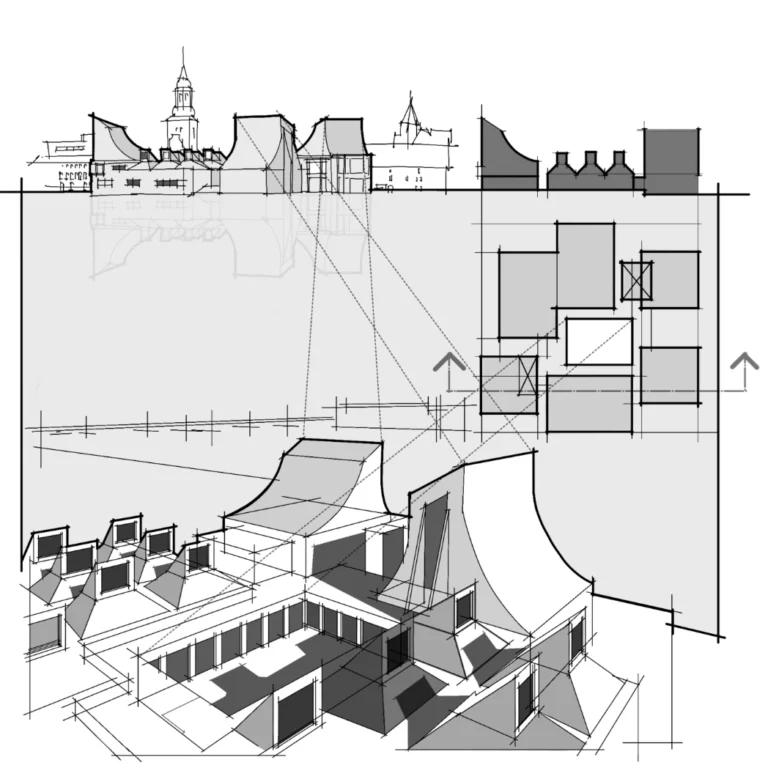

Utzon Center ✖️ Architects: Jørn Utzon & Kim Utzon ➕ Location: Aalborg, Denmark ◾️Year: 2008 (last building designed by Jørn Utzon) ➗Drawings: eye level view cross section diagram main level diagram aerial view

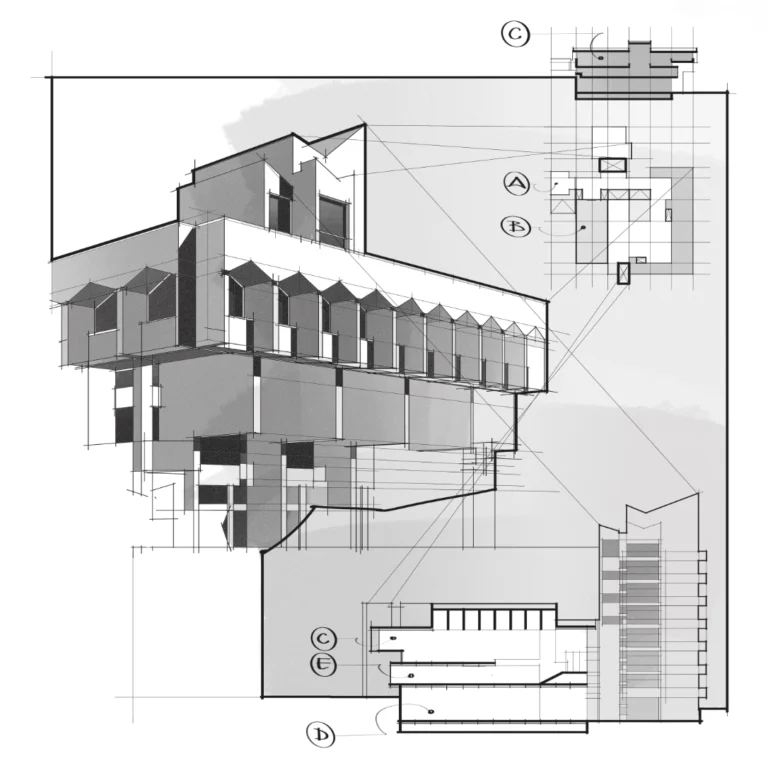

Romanian Academy ✖️ Architect: Nicolae Porumbescu ➕ Location: Iași, Romania ◾️Year: 1982 🟰 Annotations: A – entrance B – conference room C – library D – exposition space E – reading space ➗Drawings: cross section diagrams first level diagram eye…

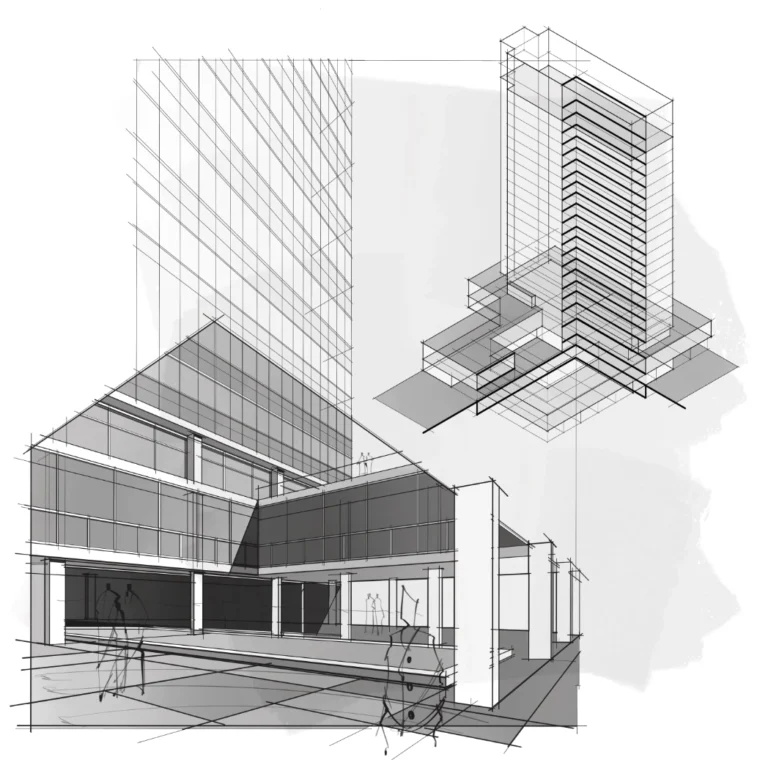

Lever House ✖️ Architects: Skidmore, Owings & Merrill ➕ Location: New York, USA◾️Year: 1952 ➗Drawings: eye level view of the inner courtyard axonometric diagram

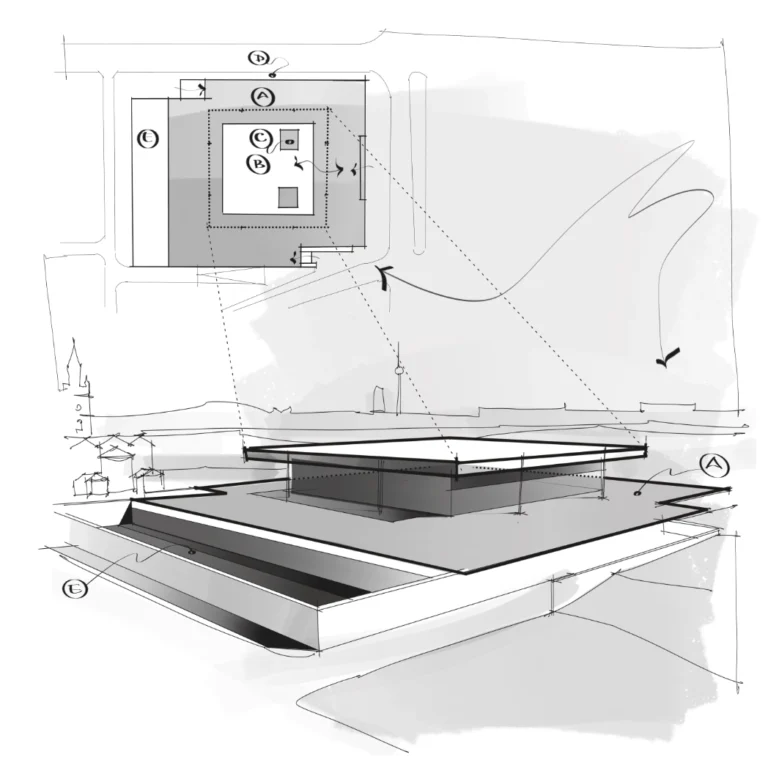

Neue Nationalgalerie (New National Gallery) ✖️ Architect: Mies van der Rohe ➕ Location: Berlin, Germany ◾️Year: 1968 🟰 Annotations: A – slab raised above the lower level exhibition B – interior space / access hall C – vertical circulation D…

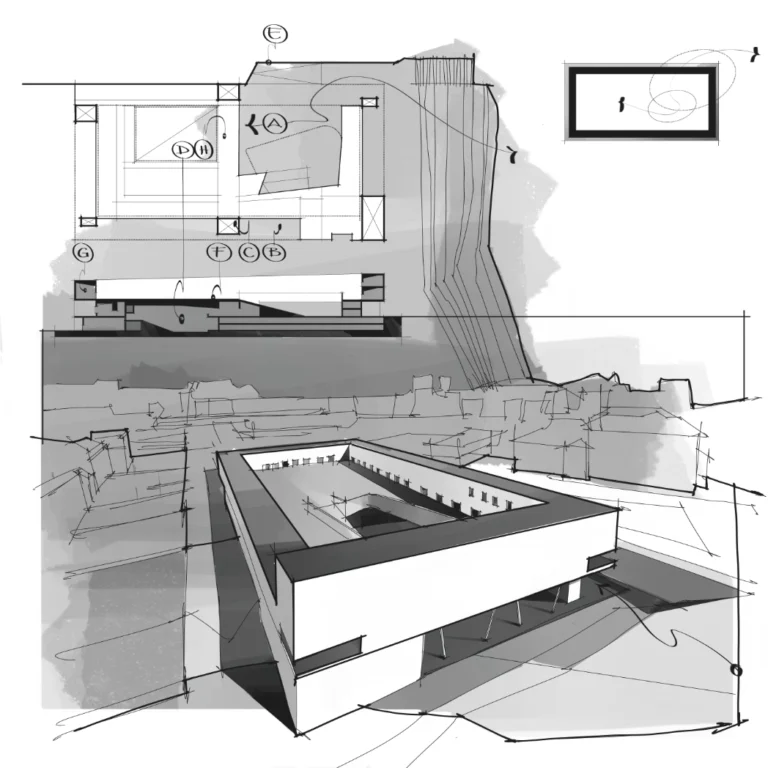

Escola Superior de Música do Instituto Politécnico de Lisboa ✖️ Architect:Carrilho da Graça Arquitectos ➕ Location: Lisbon, Portugal ◾️Year: 2008 🟰 Annotations: A – covered entrance area B – covered terraces C – vertical circulation D – auditorium (448 seats)…

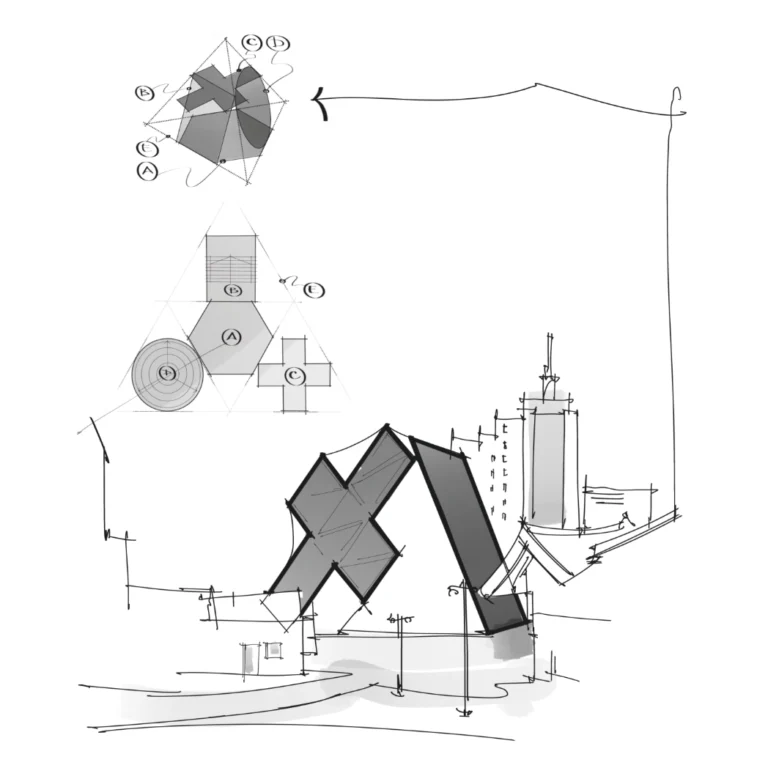

Prada Transformer ✖️ Architect:OMA ➕ Location: Seoul, South Korea ◾️Year: 2007-2009 🟰 Annotations: A – hexagon. Fashion exhibitionB – rectangle. CinemaC – cross. Art exhibitionD – circle. Special eventE – translucent membrane Temporary structure picked up by cranes and rotated…

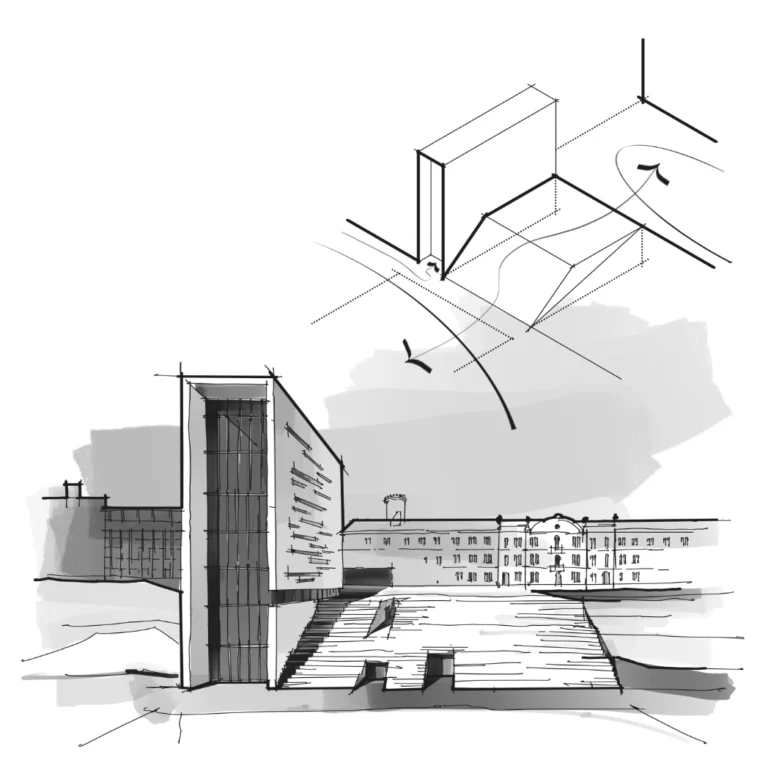

Rectory of Universidade Nova ✖️ Architect: Aires Mateus ➕ Location: Lisbon, Portugal ◾️Year: 2002 ➗Drawings: morphology diagram view towards the entrance

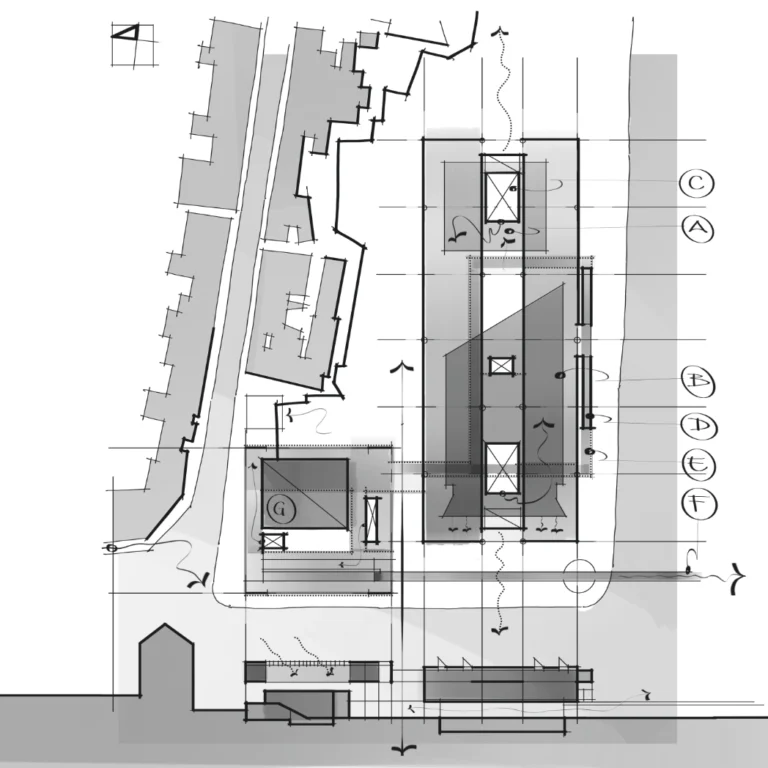

Museu dos Coches ✖️ Architect: Paulo Mendes da Rocha + MMBB Arquitetos + Ricardo Bak Gordon ➕ Location: Lisbon, Portugal ◾️Year: 2015 🟰 Annotations: A – main museum entrance B – staff area C – main vertical circulation D –…

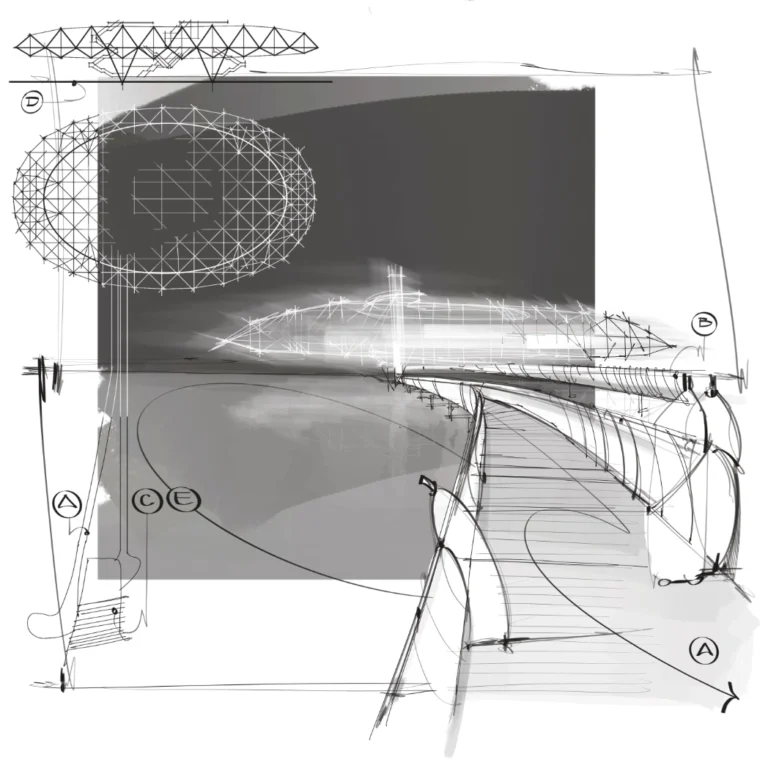

Blur Building ✖️ Architect: Diller Scofidio + Renfro ➕ Location: Yverdon-les-Bains, Switzerland ◾️Year: 2002 (Swiss Expo) 🟰 Annotations: A – Exit ramp B – sloping entrance ramp C – stairs D – water level E – Lake Neuchâtel ➗Drawings: cross…

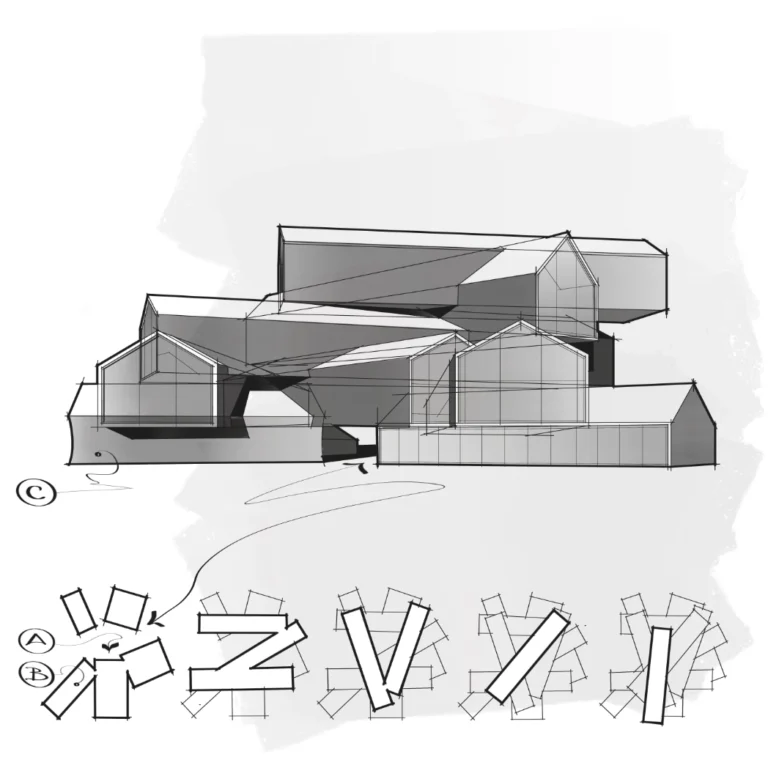

VitraHaus (flagship store and home to the Vitra Home Collection) ✖️ Architect: Herzog & de Meuron ➕ Location: Vitra campus in Weil am Rhein, Germany ◾️Year: 2009 🟰 Annotations: A – main entrance B – cafe C – shop ➗Drawings: …

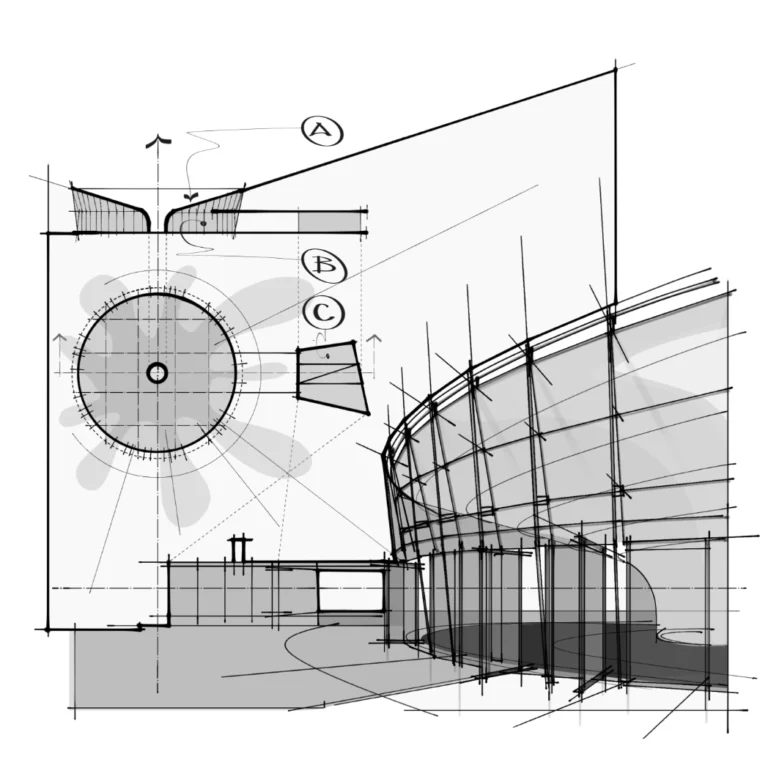

Children’s Library ✖️ Architect: Kenzo Tange ➕ Location: Hiroshima, Japan ◾️Year: 1953 🟰 Annotations: A – reinforced concrete shell structure (a cylinder, a partial toriod and a cone) B – reading room C – services ➗Drawings: cross section diagram ground floor diagram…
