Nomadic Museum ✖️ Architect: Shigeru Ban ➕ Locations: Santa Monica. New York. Tokyo. Mexico City ◾️Years: 2005 – 2007 🟰 Annotations:A – shipping containers B/C – PVC membrane D – tubular cardboard structureE – recycled wood ➗Drawings: facade and cross section axonometric view eye…

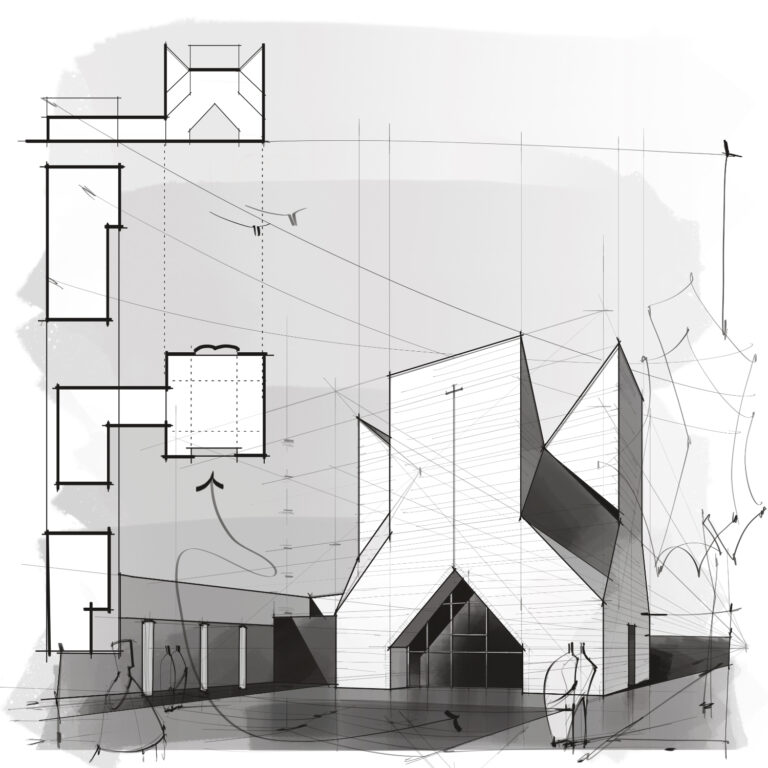

Church in Seriate ✖️ Architect: Mario Botta➕ Location: Seriate, Italy ◾️Year: 2004
Institute of Contemporary Art ✖️ Architect: Diller Scofidio + Renfro ➕ Location: Boston, USA ◾️Year: 2006 🟰 Annotations: A – main entrance B – performance hallC – exhibition gallery D – vertical circulationE – outdoor amphitheater F – auxiliary spacesG – technical areaH…
EDP Headquarters ✖️ Architect: Aires Mateus ➕ Location:Lisbon, Portugal ◾️Year: 2015 🟰 Annotations: A – exterior public spaceB – officesC – double height loggia D – relaxation spaces E – multipurpose hall F – vertical circulation ➗Drawings: cross section plan diagram eye level view
Museo Jumex ✖️ Architect: David Chipperfield Architects ➕ Location: Ciudad de Mexico, Mexico ◾️ Year: 2013 🟰 Annotations: A – elevated plazaB – lobby & coffee shopC – multi-function space & open-sided loggiaD – exhibition spaceE – vertical circulation/ service areaF – towards…
MILWAUKEE COUNTY WAR MEMORIAL ✖️ Architect: Eero Saarinen➕ Location: Milwaukee, USA ◾️ Year: 1957 🟰 Annotations:A – Exhibition galleryB – Interior courtyardC – main staircaseD – Exterior staircaiseE – Meeting roomsF – Extension toward the lake (new gallery spaces, lobby,…
Tama Art University Library ✖️ Architects: Toyo Ito & Associates ➕ Location: Tokyo, Japan ◾️Year: 2007 🟰 Annotations:A – structural grid B – vertical circulation C – technical area D – entrance ➗Drawings: cross section entrance level diagram eye level view
The Shed. Center for the Arts ✖️ Architects: Diller Scofidio + Renfro➕ Location: Hudson Yards, New York, USA ◾️Year: 2019 🟰 Annotations:A – movable outer shell (ETFE)B – fixed buildingC – tracks & wheels D – McCourt – large-scale performances spaceE –…
Premabhai Hall ✖️ Architect: Balkrishna Doshi➕ Location: Ahmedabad, India. ◾️Year: 1976 🟰 Annotations:A – foyerB – exterior foyerC – hallD – stageE – shopF – parkingG – exterior staircase ➗Drawings: cross section eye level view upper level diagram
Sumida Hokusai Museum ✖️ Architect: Kazuyo Sejima ➕ Location: Tokyo, Japan ◾️Year: 2016 ➗Drawings: upper level diagram ground level diagram eye level view cross sections
Begrisch Hall ✖️ Architect: Marcel Breuer ➕ Location: New York, Bronx Community College, USA ◾️Year: 1964 🟰 Annotations: A – entrance B – main auditorium ➗Drawings: site cross section eye level view cross section aerial view
City hall extension ✖️ Architect: Rafael Moneo ➕ Location: Murcia, Spain. ◾️Year: 1991 – 1998 ➗Drawings: ground floor diagram first floor diagram aerial view cross section
