constellations of form and social realm
constellations of form and social realm
Overhanging element projecting beyond support.

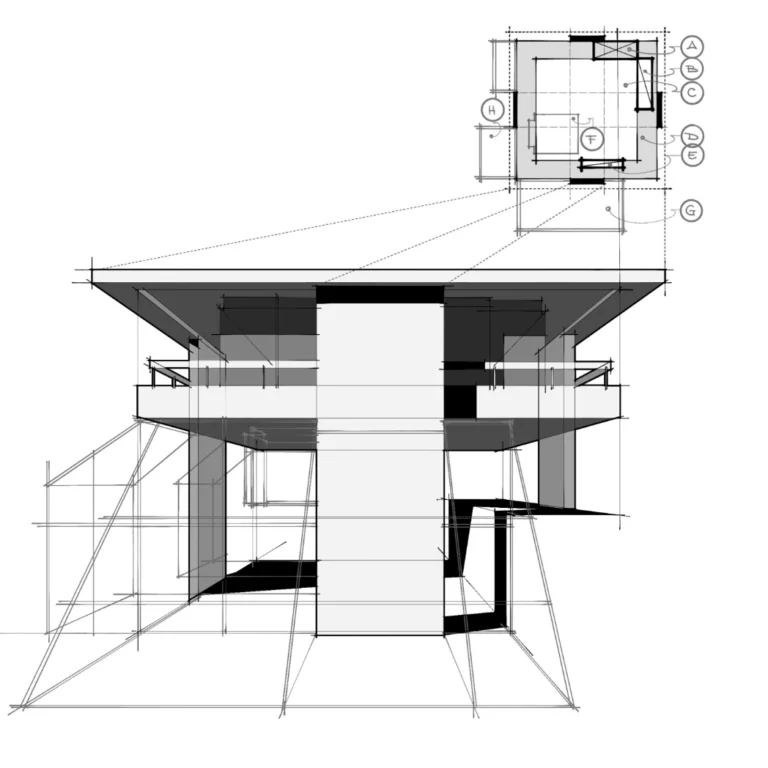

Sky House ✖️ Architect: Kiyonori Kikutake ➕ Location: Tokyo, Japan ◾️Year: 1958 🟰 Annotations: A- stair B- movable bathroom C- open plan space (living room & master bedroom) D- exterior corridor/ engawa E- movable kitchen F – 1958 – bedroom…
Shizuoka Press and Broadcasting Center ✖️ Architect: Kenzo Tange ➕ Location: Tokyo, Japan ◾️Year: 1967 🟰 Annotations: A – main infrastructural core (stairs, two elevators, kitchen and sanitary facilities) B – cantilever modular office units C – railway D –…
Museu dos Coches ✖️ Architect: Paulo Mendes da Rocha + MMBB Arquitetos + Ricardo Bak Gordon ➕ Location: Lisbon, Portugal ◾️Year: 2015 🟰 Annotations: A – main museum entrance B – staff area C – main vertical circulation D –…
Guna House ✖️ Architect: Pezo von Ellrichshausen ➕ Location: Chile ◾️Year: 2014 🟰 Annotations: A – “dogmatic piano nobile” B – central patio C – “day-to-day functions of the domestic realm” (utility room and a family dining area) D – stepped route down…
STEVEN HOLL Y HOUSE
Balancing Barn ✖️ Architect: MVRDV➕ Location: Suffolk, UK ◾️Year: 2010 🟰 Annotations: A – entrance B – kitchen and dinning area C – bedrooms D – living room ➗Drawings: cross section diagram ground floor diagram eye level view
Seoul National University Museum ✖️ Architect: OMA➕ Location: Seoul, South Korea ◾️Year: 2005 🟰 Annotations:A – lobby/ main vertical circulation B – auditorium C – exhibition D – library E – atriumF – vertical circulation ➗Drawings: cross section diagrams view towards the entrance upper…
Spittelau Viaducts Housing ✖️ Architect: Zaha Hadid Architects➕ Location: Vienna, Austria ◾️Year: 1994-2006 ➗Drawings: river view eye level view upper level diagram
Institute of Contemporary Art ✖️ Architect: Diller Scofidio + Renfro ➕ Location: Boston, USA ◾️Year: 2006 🟰 Annotations: A – main entrance B – performance hallC – exhibition gallery D – vertical circulationE – outdoor amphitheater F – auxiliary spacesG – technical areaH…
MILWAUKEE COUNTY WAR MEMORIAL ✖️ Architect: Eero Saarinen➕ Location: Milwaukee, USA ◾️ Year: 1957 🟰 Annotations:A – Exhibition galleryB – Interior courtyardC – main staircaseD – Exterior staircaiseE – Meeting roomsF – Extension toward the lake (new gallery spaces, lobby,…
Begrisch Hall ✖️ Architect: Marcel Breuer ➕ Location: New York, Bronx Community College, USA ◾️Year: 1964 🟰 Annotations: A – entrance B – main auditorium ➗Drawings: site cross section eye level view cross section aerial view
