Balfron Tower ✖️ Architect: Ernő Goldfinger ➕ Location: London, UK ◾️Year: 1967 ➗Drawings:Plan diagram with walkwaysApartment detail at the walkway level, showing access to the units above and belowPerspective 🟰 Annotations:A – main circulation nodeB – walkways placed at every third floorC –…
Theater for Children and Youth – Luceafărul ✖️ Architects: Ion Daniel Visan ➕ Location: Iași, România ◾️Year: 1977-1987 ➗Drawings:Morphological diagram Ground footprint & massing diagram Upper floor plan diagram Perspective at eye level🟰 Annotations: A – main entranceB – auditoriumC – main foyerD…
Saint Jacques de la Lande Church ✖️ Architect: Alvaro Siza ➕ Location: Rennes, France ◾️Year: 2017 🟰 Adnotations: A – entrance B – lobby (ground floor) C – meeting room D – main nave (upper level) E – main stair…
Utzon Center ✖️ Architects: Jørn Utzon & Kim Utzon ➕ Location: Aalborg, Denmark ◾️Year: 2008 (last building designed by Jørn Utzon) ➗Drawings: eye level view cross section diagram main level diagram aerial view
St. Paolo Parish Complex ✖️ Architects: Doriana & Massimiliano Fuksas ➕ Location: Foligno, Italy ◾️Year: 2009 ➗Drawings: cross section plan diagram eye level view
Atlanta Central Library ✖️ Architect: Marcel Breuer ➕ Location: Atlanta, USA◾️Year: 1980 🟰 Annotations: A – main entranceB – auditoriumC – new openings added by Cooper Carry during the 2021 renovation ➗Drawings: main facade (with new openings added during the…
Escola Superior de Música do Instituto Politécnico de Lisboa ✖️ Architect:Carrilho da Graça Arquitectos ➕ Location: Lisbon, Portugal ◾️Year: 2008 🟰 Annotations: A – covered entrance area B – covered terraces C – vertical circulation D – auditorium (448 seats)…
Children’s Library ✖️ Architect: Kenzo Tange ➕ Location: Hiroshima, Japan ◾️Year: 1953 🟰 Annotations: A – reinforced concrete shell structure (a cylinder, a partial toriod and a cone) B – reading room C – services ➗Drawings: cross section diagram ground floor diagram…

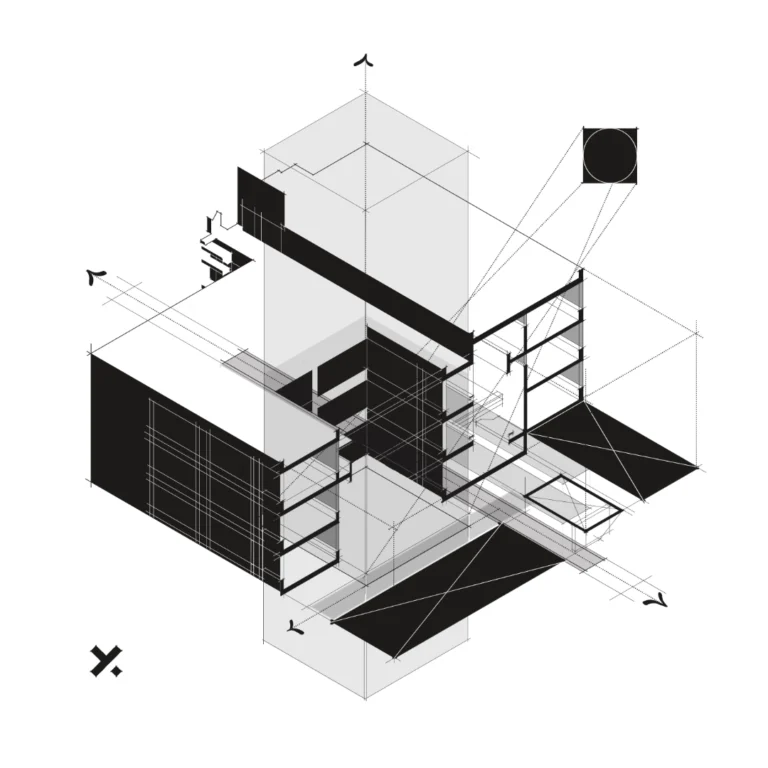

Faculty of Architecture ✖️ Architect: Nicolae Porumbescu ➕ Location: Iași, România ◾️Year: 1970 🟰 Annotations:A – main entranceB – inner courtyardC – workshops D – main staircase & multifunctional space ➗Drawings: cross section diagram first floor diagram eye level view
Carlos Ramos Pavilion – School of Architecture ✖️ Architect: Álvaro Siza ➕ Location: Porto, Portugal◾️Year: 1986 🟰 Annotations:A – servicesB – studios overlooking a central courtyardC – entrance and main staircase ➗Drawings: upper level diagram view towards the entrance cross section digram facade
Timmerhuis ✖️ Architects: OMA ➕ Location: Rotterdam, Neatherlands ◾️Year: 2015 🟰 Annotations:A – existing municipal building (Stadstimmerhuis)B – office spaceC – vertical circulationD – courtyardE – commercial spacesF – floors dedicated to office spacesG – housingH – passagewayI – museum ➗Drawings: cross…
Domus – Interactive Museum of Man ✖️ Architect: Arata Isozaki ➕ Location: A CORUÑA, Spain ◾️Year: 1995 🟰 Annotations: A- accesB – exhibition spaceC/D – auditorium/ 3D cinemaE – skylightF – snack-bar ➗Drawings: aerial view upper level diagram cross section diagram eye level…
